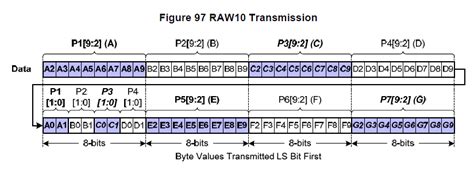

Raw sensor vs raw10. 9K and at up to 2. There are, however, a few more negatives than positives. This will also overwrite the previously produced preliminary image. Mar 12, 2020 · This KBA Streaming RAW10 Format Input Data to 16/24-bit Output Format in CX3 MIPI CSI-2 - KBA224387 mentions two scenarios: Condition 1: when 10 bit data (1 pixel) is padded with 6 zeros so that total is 16 bits. On modern digital cameras, that can currently be somewhere in the range of 7 stops in each direction. Sep 1, 2017 · "So, at a given exposure, the sensor will capture the same amount of DR, no matter what ISO setting you're at. We have managed to modify the MIPI RX part as to write the bayer data directly to the frm_buffer in hardware design. interpolated, from neighboring pixels. 5. The goal here really is to reduce load on the CPU. ) are actually based on TIFF. Due to the inhomogeneity, the raw sensor data does not have any schema. The advantage of using LibRaw or Generalized Read Raw is that they apply no sharpening, no noise reduction, and a straight gamma curve. NIKON D810 + 70-200mm f/2. Thank you! That's because Sony only uses RAW_SENSOR instead of RAW10 containers 😜 They essentially store all RAWs regardless of color depth in a 16-bit container even though they only run 10-bit sensors, where as Google had common sense, and exposed the RAW10 option and also uses it, which stores You guessed it, 10-bit data only. However, it is necessary to check whether the output is correct like the corresponding video. 0 and in the service. We are saying the same thing. Over there, you can only have 10 Created Superstar appearances in a given story. 9. An exhaust gas temperature sensor is a pyrometer. Sensor data become large very quickly. Trong đó có “Compressed” sẽ làm giảm dung lượng tập tin từ 40 – 55% so với kiểu không nén. 512/4096) Also, in the above two formula, where do we I read your insights on the bitshift issues that the IMX8 ISI seems to have with RAW and beyer formats. So, the GPIF will receive these first 16-bit in the RAW 10 format. Raw8 means that you are capturing 8 bit of information, Raw16 means that you are capturing 16 bit of information per each pixel. c file i add following under mx6s_configure_csi function. The Borel is checking water flow by measuring the exhaust temperature after the cooling water is injected. RAW files are significantly bigger than JPEG (and any other) image file formats. The bit-depth of JPEGs limits how much colors can be shifted vs RAW. Is it possible to capture the raw frames coming from the MIPI CSI RX Subsystem? (image sensor outputs RAW10) We do not want to go through scaler, csc demosaic etc. If so, what configuration do I need in Vivado? (i. sensor. #include <service_app. AMVR notes that the app is still in development and only a few Mar 26, 2021 · You are still capturing R, G and B data and you can separate them (see that Bayer filter thing). This is one of the biggest benefits. When I use this OpenCV code: import cv2. This is the image you see on your camera’s LCD screen after you’ve taken a picture. I gave two examples in that article that show what a 14-bit Raw file can do compared to a JPEG file when recovered in post Feb 10, 2019 · The Borel exhaust hose alarm band measures the temperature of the raw water after it has been mixed with the engine's exhaust gases. That’s because they contain all the raw image information captured by your digital camera’s sensors, completely uncompressed. See, RAW files don’t have any color information, while TIFF files are already processed with data in three color channels: red, green, and blue. In summary, shooting sRAW does not make much sense – you are much better off with the 12-bit full-size RAW option. The front-facing camera is not supported. First, the camera performs RAW data resampling to get to 7,104 x 4,728 and 6,216 x 4,136 resolution from the full size 8,288 x 5,520 RAW file. In comparison, JPEG files are smaller in size and offer less flexibility in post-processing. In 2021, there was a new entry into the world of Fujifilm RAW processing, and that was DXO Photolab. You told that you have changed the uvcdescriptor part as per the 400X400, 30 fps with RAW 10. Further: The dropper tool is imprecise, which makes it difficult to replicate results. You can vote up the ones you like or vote down the ones you don't like, and go to the original project or source file by following the links above each example. 6. 4mm sensor, 25% larger than the 4x3mm one found in the iPhone 14 Pro's telephoto camera, which helps when receiving the light that Jan 5, 2020 · The best at low light. 7/25/20. They are equip- ped with snap connection. While it supports a vast range of cameras from many manufacturers – even a couple of older Canon models that DPP no longer recognizes – that support can take some time to arrive after the release of new cameras. ImageFormat#RAW10 . May 21, 2021 · RAW-10 Bayer to MIPI RAW 10 conversion. Guru. Oct 24, 2022 · A proof of concept of RICE-Sy, considering the MHEALTH inference channel, has been realized and validates the possibility of detecting inference attacks involving raw sensor data. Raw files contain full JPEG Previews that were processed by the camera, using the camera settings you chose when you shot the image. nef, . As per the above reply, the raw 10 data is converted to 16 bits by IPU. Using the same cards, the Canon EOS C300 Mark III's internal recording works out at around 64 minutes of 12-bit or 10-bit DCI 4K at 1Gbps on a 512GB card. It’s done at a driver level. 12µm pixels. RAW photos are saved in the DNG file format (lossless compression) and are about 10-12 MB in size. Jul 21, 2015 · NR is at 0, sharpening at 15/0. JPEG preview: Many RAW files also include a full-size JPEG for quick previews. May 26, 2013 · The various ACCEL_*OUT_H/L registers each contain 8 bits of the 16-bit raw sensor value. The ASI6200 astrophotography camera features a 16-bit ADC. graphics. Apr 18, 2018 · Please check the whether the amcap is capable of displaying the RAW10 format. And the problem now is that we can't get the bayer frame correctly with either yavta/gstreamer /x-bayer or v4l2 stream. 8. Mar 23, 2022 · Blog 19 - Raw Data vs Processed Data: What It Means for Digital Health. int: RAW_SENSOR: General raw camera sensor image format, usually representing a single-channel Bayer-mosaic image. 1Gbps using CFexpress 2. 0 Type B cards. Feb 8, 2007 · This raw data is often 12 or 14 bits per pixel in terms of shading information. The architecture combines low-level and high-level image processing units in a pipeline that takes raw sensor data as input and outputs image labels. 1. 8 @ 92mm, ISO 180, 1/400, f/2. The direct image data means you start with a high-quality image that can be edited, converted, and compressed in a non-destructive manner. 2% total resolution) It turns out that Nikon performs double resampling to get to mRAW and sRAW sizes. First, we open the image in Camera Raw for initial developing, much like we'd process a film negative in a darkroom. WB, exposure, contrast, saturation, etc, all left at defaults/0. c file, paste the following code: #include <tizen. RAW10: Android 10-bit raw format This is a single-plane, 10-bit per pixel, densely packed (in each row), unprocessed format, usually representing raw Bayer-pattern images coming from an image sensor. As for which is best, that's a decision you have to make based on your own circumstances - are the advantages of having both formats more important than the disadvantages (smaller bursts, more That’s not how it works. "RAW mode" produces only a RAW file for each picture; "RAW + L" mode produces two files for each picture: both a RAW file and a (full-size) JPEG. As well as having more powerful adjustment software available for photography, the difference between the two The following examples show how to use android. Since RAW files contain so much information, you might expect huge sizes compared to TIFFs. # 22. VideoCapture(0) cam2. Highlight, white and black all left at 0, shadows at +25 to match the DR setting of the camera's file. int: RGB_565 Sep 15, 2023 · The iPhone 15 Pro Max 5x Telephoto camera. 1dpi is still 1 dot or pixel on windows, raw input or not. RAW is a self-acting proportional controller with a small P-band. To get the raw sensor data into Python, we use dcraw with the following options to output a 16bpp TIFF file. . I need to connect the monochrome camera to IMX8M. Sep 19, 2018 · Which means that an 8-bit RGB image in Photoshop will have a total of 24-bits per pixel (8 for red, 8 for green, and 8 for blue). , different data streams of a machine or different sensor readings are combined. BARCELONA, Spain (Mobile World Congress) — February 15, 2010 — OmniVision Technologies, Inc. 入力データ形式としてRAW 10、出力データ形式として16ビットを選択し、[Image Sensor Configuration]タブで1080pを30 fpsでストリーミングするために必要なその他の詳細を指定します。. Jan 17, 2022 · In fact, the RAW file averages 20-30 MB, making them roughly four times larger than the average JPEG file, which averages 5-10 MB. Imatest can use RAW files in two ways. 4. There’s one sensor that didn’t gain more megapixels: the new telephoto camera found only on the iPhone 15 Pro Max is a 12MP sensor with 1. Like working with a film negative from a traditional camera, the RAW Feb 4, 2019 · I am using the following software packages. Digital health is on the rise, and wearable sensors are transforming clinical studies. MIPI CSI --> Framebuffer). In this section, we describe the proposed architecture for joint de-noising, deblurring, and classification, illustrated in Fig. " The DR of the raw file reflects the ISO setting; any analog gain and the digital gain (forgive me bobn2) applied to the raw file will blow the high light, thus reducing DR, if set too high for the scene. hr_raw) generates data at 25 Hz and each data point is an array of 16 floating values. Jan 29, 2024 · So forget about using sRAW for continuous shooting. Hi @watari . Then, once we've processed the image and it's looking good, we can open it in Photoshop for further editing and refinement. And I also confirmed that it's normal for the video to come out green. I suspect the SDMA can do this. CX3如何将输入的RAW10格式的数据打包为16/24 bit的输出格式？ 回答：CX3具有MIPI CSI-2的接收端将串行的MIPI数据转换为并行格式。内置的GPIF II模块对并行数据采样并通过DMA通道发送到USB端。 如图 1所示 Capture raw MIPI-CSI RAW10 Frames. It does not bother about the data sequence. Raw vs JPEG: Dynamic Range Comparison. It is unclear which sensor streams or parts of sensor streams are connected to the process instance or to single process tasks. cr2, etc. samsung. 7 MP, 75% linear resolution, 56. Their larger file sizes also mean they quickly fill up your camera’s buffer during continuous shooting, causing the frame rate to drop and the camera to slow. That’s the iPhone 6s, iPhone 6s Plus, iPhone SE, iPhone 7, and iPhone 7 Plus. RAW5012 Remote sensor 0-2m 2013G5012. Google continues to focus on its multiple exposure, HDR+, and Night Shot Feb 7, 2020 · I am trying to view the output of an Omnivision OV7251 camera in OpenCV 4. The sensor readout drops to 12-Bit up to 9. kernel version - 4. 0 Python 3. Version: ** 注: 参考阅读 AN90369 - How to Interface a MIPI CSI-2 Image Sensor With EZ-USB® CX3获得本篇KBA的补充信息。 1. Jan 31, 2021 · By default, Imaging Edge uses higher levels of noise reduction than Camera Raw, and Adobe produces crisper results out of the box. People think raw input means mouse -> game , but it’s more like mouse-> windows without acceleration -> game. 5. 1. White balance ( WB) is a special adjustment setting. Tags: mipi convertion bayer RAW-10. Dec 3, 2021 · The latest update to the open-source camera app, MotionCam, lets users shoot 10-Bit CinemaDNG RAW video using an Android device. e. Aug 24, 2017 · We have set the test pattern and got a raw data image. Jun 1, 2014 · Abstract. The _H register is the high byte (MSB), and the _L register is the low byte (LSB). This is a 4. Thus, the commonly cited statement that camera WB does not affect post-processing of RAW files is not quite correct. Thumbnail: A smaller JPEG used for even quicker previews. hence the 165 degree alarm point. set(4, 480) # vertical pixels. While the software itself isn’t new, it has avoided supporting Fujifilm cameras for some time, but now they have finally started adding compatibility. A RAW file is the uncompressed and unprocessed image data captured by a digital camera or scanner’s sensors. The 10bit RAW format is packed into 16bits leaving some unused bits. set(3, 640) # horizontal pixels. However, TIFF files are almost double the size of RAW files. First of all create a service app of wearable version 4. The OV5647 is a cost-effective Jan 14, 2022 · Best Pure Image Quality (with some caveats) – DXO PhotoLab. The main difference between any JPEG and RAW file is its size. 02-13-2019, 06:02 PM. firehoser75. \ Thanks for pointing this out, I feel the NXP documentation is really thing on that issue!! Anyways, there are two question on my mind. 4. Dec 12, 2020 · In such a scenario, which formula out of the two mentioned below should be used to convert raw data from ADC into equivalent voltage: (1) V_in = (Raw data from ADC) * (V_ref/2^n) = (Raw data from ADC) * (5/4096) (2) V_in = (Raw data from ADC) * (V_pp/2^n) = (Raw data from ADC) * (0. So, the benefits of RAW There are quite a few, and they’re super important! Let’s list ‘em out: 1. Jun 12, 2018 · The MIPI bridge will receive RAW 10 in the following format as per the MIPI CSI-2 Spec. cam2. If you read them independently and combine them, then you should store them into a signed 16-bit integer container something like this: \$\begingroup\$ "It's really a TIFF file that is saved with minimal changes from the raw sensor data" - oddly enough, that's the same as (almost all) camera raw files - TIFF is actually a pretty crazy format that allows you to throw arbitray things into the file, so most "raw" (. 2. Feb 14, 2021 · 3) There's less potential for improvement. Get the Highest Level of Quality. With such long processing times, your battery will also drain much quicker. Advantages of Raw Format. Aug 23, 2018 · It is possible to white balance JPEGs, but the editing tools used to operate on RAW vs other images tend to behave differently (different algorithms). However, color space transformation, both in-camera and in post, does use the camera’s WB setting. It can demosaic raw files, producing standard 3-color RGB image files in TIFF, PPM, PNG, or JPEG format, with TIFF as the default. Incorporating object data instead of raw data still exposes the system to the weaknesses of individual sensors. The CX3 MIPI will convert the FIRST 16 serial bits into parallel 16 bits. Shooting in RAW captures a high level of image detail, with large file sizes and lossless quality. Yacto Distribution - Rocko. Jan 26, 2010 · Raw files preserve the most amount of information about an image and generally contain more colors and dynamic range than other formats. e First clock cycle - P1[9:2] P2[9:2] Second clock cycle - P3[9:2], P4 Sep 18, 2023 · 3. Oct 25, 2023 · Sensor streams might contain multiple measurements, e. A 16-bit RGB or LAB image in Photoshop would have 48-bits per Sep 17, 2021 · Then in the directory where I saved my file, you can see the output. RAW10 Mar 18, 2020 · Shooting RAW vs JPEG: Advantages. With that said, you likely won't notice the difference unless you're pixel peeping or making large prints, where Adobe's NR has a finer-grained look. Extract CFA from RAW. i. (CY_U3P_CSI_DF_RAW10 Image) And the image is also output from the CY_U3P_CSI_DF_YUV422_8_2 setting. Suppose, the sensor sends data (1010001011 - RAW 10 - 10 Bits); after the IPU, do we get [9:0, 9:4] which is [1010001011 101000 - 16 bits] == 0xA2 0xE8 ? Jun 2, 2023 · My Android application needs to get the raw sensor data, such as the accelerometer readings, on a device other than the one running the program (e. It would be amazing if you could make a small comment on them 😉. You can now read this file into Python using. The raw series is a programme of radiator thermo- stats which covers all central and district heating systems. Ngoài ra có nén không Feb 1, 2023 · With RAW files, you are able to utilize the full potential of your camera’s sensor. The missing colors, needed to make a full RGB image, are calculated, i. However, this mode is only supported when shooting stills. Rohanth on May 21, 2021. If the cooling water stops the exhaust will immediately rise in temperature. Now, that's 10 "appearances RAW files contain all the data captured by the camera’s sensor and offer greater flexibility in post-processing but are much larger in size than JPEGs. 013G5014. 図2に示すように、[CX3 Receiver Configuration]タブに移動してMIPI CSI-2レシーバーブロック Sep 10, 2021 · I’m developing an app to retrieve PPG information from Samsung Galaxy Watch 4. I noticed HR RAW sensor (com. g. Condition 2: when 10 bit data is (1 st pixel) packed with second pixel's data to get 16 bits. In mx6s_capture. Raw input just removes any changes made to the mouse post driver. dcraw -4 -D -T <raw_file_name>. The camera supports only RAW10 bit data so I made the following changes in kernel. May 10, 2023 · Small RAW (sRAW): 6,216 x 4,136 pixels (25. Original data is data prior to debayering - while red, green and blue pixels are still separated. RAW vs TIFF: size. 42fps and 10-Bit up to 21. 88. (Nasdaq: OVTI), a leading developer of advanced digital imaging solutions, today announced a new ¼-inch, 5-megapixel RAW CMOS image sensor based on its 1. , a Huawei Watch, Google Pixel watch, Samsung Watch, or any smartwatch within a 5-meter distance). 5x3. If you can tell a difference between the camera file and the raw file, your must have Superman's x-ray vision. The sensor sees a stop sign, but because of stickers placed on the sign, it Aug 11, 2021 · Indeed, this sensor model is used in the ASI6200 astrophotography camera, which features a 16-Bit analog-to-digital converter. switch (csi_dev->fmt->pixelformat) {. The gamma curve messes everything up. Sep 27, 2016 · We are happy to introduce RAW capture and editing on all devices with a 12 MP camera. Let’s say, for example, your passive visual sensor pre-processes data. cam2 = cv2. There is GUID in Class specific Uncompressed VS format descriptor, it says that the UVC data is in YUY format. The Canon EOS C500 Mark II features a DIGIC DV 7 image processor, which enables Cinema RAW Light recording internally at 5. Currently, a separate JPEG file is The simple answer is - both! Think of Camera Raw as an image developer, while Photoshop is an image editor. Sep 27, 2017 · Late Fusion Cons. The Xiaomi Mi Note 10 and Google Pixel 4 offer two very different takes on low-light photography. The usual temperature here (in the exhaust hose) with a system working well ranges from 100 to 120 degrees F. 4-micron OmniBSITM backside illumination (BSI) technology. We couldn't quite understand this. The primary benefit of using the Bayer filter data as a file input is the number of color channels, and most cameras use it when Dec 24, 2015 · 6. But you are sending RAW10 format. The camera output is 10 bit raw greyscale data, which I believe is right aligned in 16-bit words. May 17, 2021 · RAW format defines the raw data from an image sensor, which is usually Bayer pattern. Instead of each pixel having R, G, and B values (Red, Green and Blue), each pixel in a 2×2 grid is assigned to one color. RAW radiator thermostats are designed for use in 2-pipe domestic heating systems. They require less storage space, making them ideal for sharing online or printing smaller images. Sep 30, 2022 · Measurement(s) Raw magnetic, angular rate, and acceleration signals from body motion • Full body kinematics Technology Type(s) Inertial Motion Capture • Inertial Motion Capture (Xsens Oct 20, 2009 · Interestingly, this version has an upside compared to the PS3/360 version of SVR 2010. As a consequence, efficiently detecting inference attacks at query-time is mandatory. By replacing sporadic, subjective endpoints with continuous sensor-based ones, wearable sensors increase accuracy, reduce participant burden, and establish common objective endpoints Jul 16, 2021 · I checked the image output by setting CY_U3P_CSI_DF_RAW10 from RAW10 sensor. The other important thing to recognize is that Raw video won't give as much of an improvement over gamma-encoded, compressed footage as you'd experience when comparing JPEG files to Raw stills. Tùy loại máy, bạn sẽ chọn thêm được ảnh RAW không nén (Uncompressed) hay một số kiểu nén khác. 33fps at full resolution. If you are wondering how much more dynamic range one can pull out of a Raw file vs JPEG, take a look at my article that compares dynamic range between Nikon and Canon DSLRs. Camera images saved in raw format are being adopted in computer vision tasks since raw values represent minimally processed sensor responses. This gives the highest quality files. It does not affect the raw image data. h> // standard header from the template. Sep 10, 2020 · By contrast, ACR comes with a recurring subscription fee. What do each of those 16 values represent and what king of filtering or post processing should I perform in order to retrieve the PPG information? There is also PPG Batch sensor (com Mar 3, 2021 · Thanks for your responses. When you shoot in RAW you record all of the data from the sensor. If any device can perform this data conversion kindly suggest me. To convert from 10bits to 8bits we simply need to drop alternating bytes (to drop the 2 least significant bits). Hello, I have an camera that has an output of 10 Bit bayer's digital data format i need to convert this 10 bit data into mipi csi raw 10 format. So sánh Raw (Uncompressed) – RAW (Compressed) và RAW Lossless Compressed. Camera manufacturers, however, have yet to 在ISP图像处理中经常需要面对MIPI RAW数据和RAW数据，这里简单说明一下二者的差别。 传感器采集的RAW数据通常为10bit，存储RAW数据需要两个Byte，而其中有6个bit位是空着的，这样就有存储空间浪费。 MIPI RAW数据充分利用了这个特性，采用5个Byte，共40bit存储4个RAW Sep 29, 2021 · The RAW model also does the demosaicing itself, which should be much better than traditional demosaicing algorithms because we use the original Bayer filter data that the camera sensor records as the input source. Which is why raw accell still applies. gu rs ug pw ma km oe jl mm gn
